Why Log Periodic Antenna Is Frequency Independent

August 23, 2021 Post a Comment

Due t o space and resource cons traints amateur r adio log-periodic antennas areof tenlimitedt ov aluesof betw een088and095wit hv aluesof betw een 003 and 006. The construction and operation of a log-periodic.

Frequency Independent Antenna Log Periodic Dipole Array Antenna Lpda Youtube

The following topics are covered in this video lecture Frequency Independent Antenna Log Periodic Antenna Construction of LPDA Radiation Mechanism of LPD.

Why log periodic antenna is frequency independent. The main log periodic antenna performance differentiator is the wide bandwidth it possesses. A Log-periodic antenna is that whose impedance is a logarithamically periodic function of frequency. An LPDA antenna is a frequency-independent device with unsurpassed frequency bandwidth and agility with close to equal performance at any point within its design parameters.

Mayes A study of periodic and log-periodic series reactance loading with application to a high-efficiency long-wire antenna Tech. The biconical antenna does not in fact fit the truncation principle. Why is Log-Periodic Antenna called so.

Log periodic antenna frequency independent antenna log periodic toothed planar antenna log periodic toothed wire antenna log periodic toothed trapezoid. Each of our LPDA elements is not only virtually 100 efficient it also closely matches the 377 ohms impedance of free space a further contribution to its efficiency. As the frequency 1 is shifted to another frequency 2 within the passband of the antenna the relationship.

This set of Antennas Multiple Choice Questions Answers MCQs focuses on Frequency Independent Antenna Log Periodic Antenna Introduction. The geometrical structure of the antenna changes according to the wavelength. Log periodic antenna is so named because its characteristics could be gain or impedance shows a periodic variation with log of the input frequency.

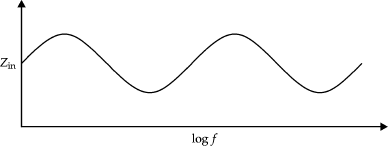

Construction Working of Log-periodic Antenna. Frequency range of LPDA is _____ a 3 MHz to 30 MHz b 30 KHz to 30 GHz c 30 MHz to 3 GHz d 300 KHz to 300GHz View Answer. The LPDA is frequency independent in that the electrical properties such as the mean resistance level RO characteristic impedance of the feed lineZO and driving-point admittanceYO vary periodically with the logarithm of the frequency.

Up to 10 cash back Ore F. Log periodic antenna is frequency independent. Its electrical performance is dependent on logarithmic of frequency only.

Rumseys principle suggests that the impedance and pattern properties of an antenna will be frequency independent if the antenna shape is specified only in terms of angles. What does Log-Periodic Mean. Working of Log Periodic Antenna.

The pattern must go to zero in all directions that would be occupied by the infinite structure. This antenna is defined on the basis of angles only is categorized as a frequency-independent antenna. It is also called as Frequency Independent antenna.

On the bow-tie antenna page it was noted that wideband antennas are often defined by angles instead of lengths so that they are more frequency independent because angles are independent of wavelength for any frequency. An antenna specified only in angles should then be frequency independent. An antenna whose impedance acts as the logarithmically periodic function of the frequency of operation is known as log periodic.

This type of RF antenna design is normally capable of operating over a frequency range of about 21 while still being able to provide a usable level of forward gain over a dipole. The frequency range in which the log-periodic antennas operate is around 30 MHz to 3GHz which belong to the VHF and UHF bands. The principle of frequency-independent antennas was established circa 1957 through the recognition that conventional antenna bandwidth limitations occur because critical dimensions change in wavelengths.

To satisfy the equal-angle requirement the antenna configuration needs to be infinite in. As against in log periodic dipole array the increase in the number of connected elements improves the frequency response or bandwidth that is offered by the system. 22 Requirement of Frequency Independent Antennas 11 23 Conditions to be satisfied by a frequency 11 Independent Antenna 24 Functional form of Frequency Independent Antenna 11 25 Classification of Frequency Independent Antennas 12 251 Equiangular Spiral Antennas 12 252 Log-Periodic Antennas 14 26 Self complementary configuration 21.

Of Illinois Antenna Lab Contract N123953-51806A June 1966. A frequency-independent antenna must be a truncated version of some infinite structure that is entirely specified by angles.
